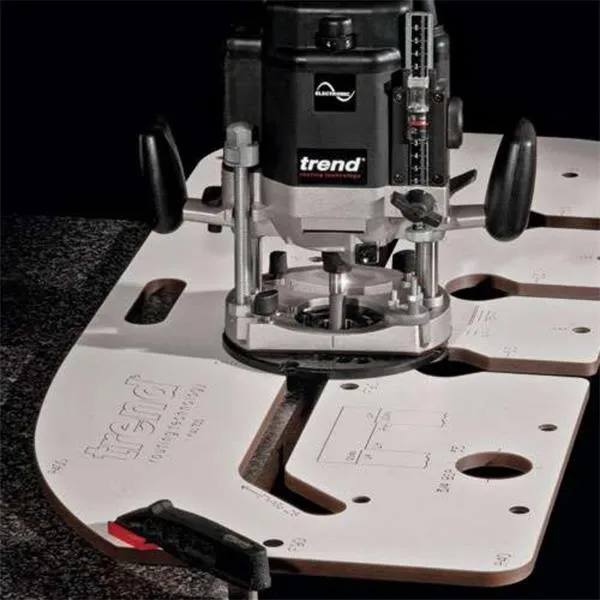

Trend KWJ700 700mm Kitchen Worktop Jig

FEATURES:

• Hard wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including set up
• Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4 inch BSP hole for mixer taps
• Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops
• Cuts up to 40mm thick worktops with or without anti-drip post-formed edge
• Three open ended bolt recesses (dog bones) for 150mm bolts
• Engraved lines for short 65mm bolts and worktop cross-cut
• 10mm diameter plastic pins with a tapered shoulder for a tight fit that ensures three point pin contact for ease of set up
• Engraved markings for identifications of pin holes

SPECIFICATION:

• Length: 985mm
• Width: 390mm
• Thickness: 12mm
• Weight: 5.4Kg
• End Cut: 45 Degrees
• Corner Radius: 40mm
• Corner Radius: 100mm
• Corner Radius: 400mm
• Corner Mitre Joint: 45 Degrees
• Female Cut Material Width Loss: 35mm



Jig Requirements:

• Guide Bush: 30mm
• Plunge Router: 1/2 Inch (min 1300 watts)
• Cutter: 12.7mm x 50mm Cut
• Clamps: Two
